Krytox™ LVP and VPF Vacuum Lubricants
The lubricants Krytox™ LVP (low vapor pressure) and Krytox™ VPF (vacuum pump fluid), specially developed for vacuum technology, have excellent properties. They have a very low vapor pressure, work in an extremely wide temperature range and are resistant to aggressive chemicals.
When it comes to safety, disposal and maintenance, Krytox™ VPF oils have clear advantages over conventional vacuum pump oils. Krytox™ VPF oils are non-flammable, chemically inert and particularly safe to use with high oxygen concentrations.

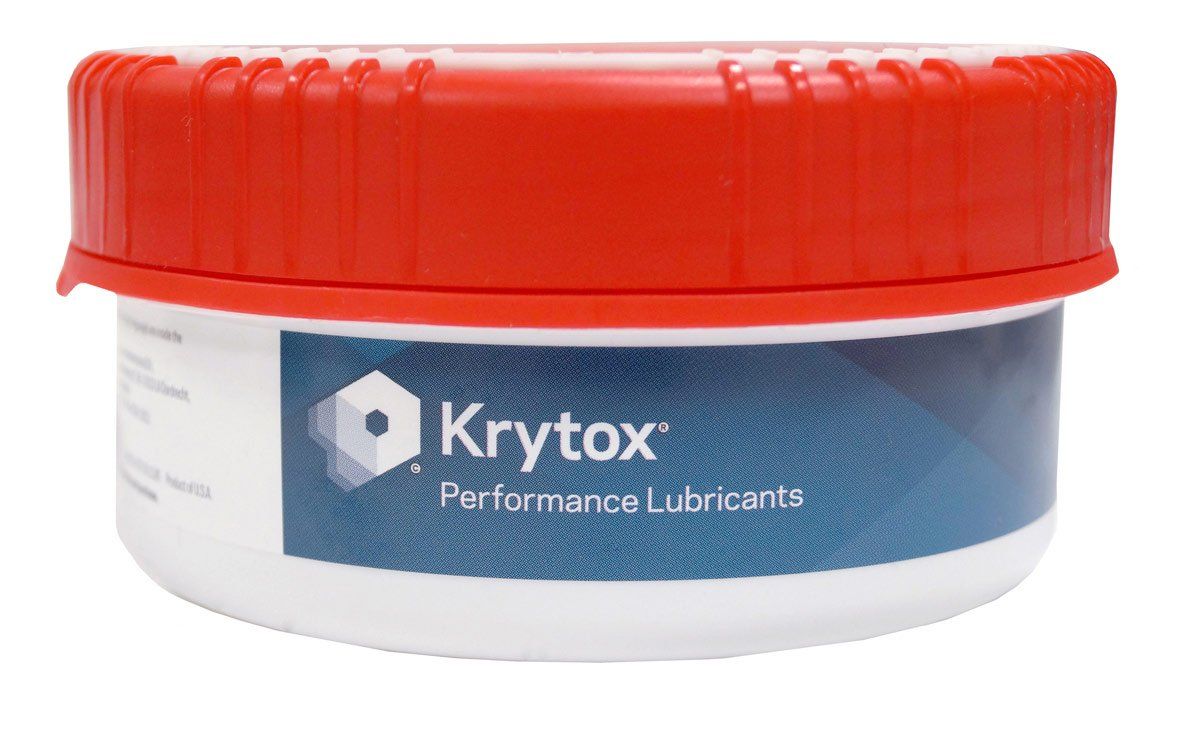

Krytox™ LVP High Vacuum Grease
| Manufacturer | Chemours |
| Application | Vacuum pump grease |
| ASTM Walkpenetration (0.1 mm) | 280 |
| NLGI class | 2 |
| Vapour pressure | <1.3 x 10E-13 mbar |
| Density (25 ⁰C) | 1,94 g/cm³ |
| Colour | White |
| Temperature range | -36°C to +204°C |
| Viscosity (20°C) | 550 cSt |
| Viscosity (100°C) | 18 cSt |
| Volatility | <0,3 % |
| Base Oil | PFPE |
| Thickener / solid lubricant | PTFE |

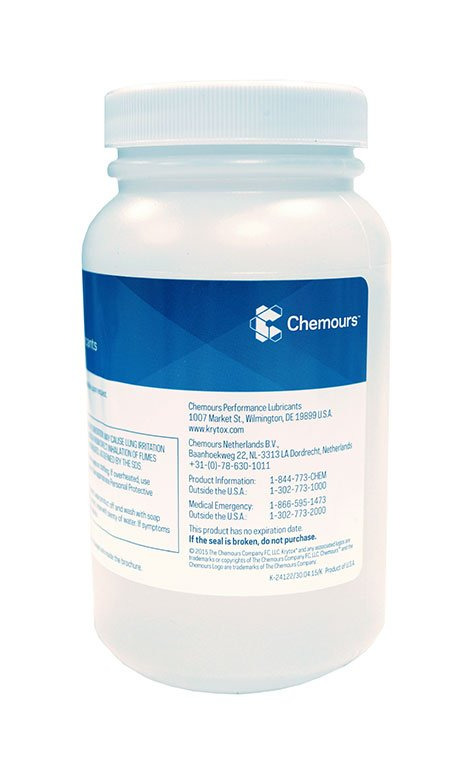

Krytox™ VPF Vacuum Pump Oils
Since conventional vacuum pump oils can cause safety, disposal and maintenance problems, Krytox™ VPF oils are used in applications because they:
- non-flammable
- non-reactive
- safe usage in oxygen systems
Numerous qualities of Krytox™ VPF oils have been developed for extreme conditions. You can find key attributes in the table. Further information can be found in our product data sheet.
| Product name | Krytox VPF | ||
| Manufacturer | Chemours | ||
| application | Vacuum Pump Oil | ||
| Base oil | PFPE | ||
| Minimum temperature | -45°C | ||
| Viscosity (20°C) | Viscosity (100°C) | Vapor pressure (20°C) | |
| Krytox™ VPF 1506 Oil | 60 | 4,1 | 4 x 10E-7 torr |
| Krytox™ VPF 1514 Oil | 140 | 7,2 | 2 x 10E-7 torr |
| Krytox™ VPF 1525 Oil | 250 | 10,6 | 1 x 10E-7 torr |
| Krytox™ 1531XP Oil | 310 | 12,5 | 1 x 10E-7 torr |
| Krytox™ VPF 16256 Oil | 2560 | 64,6 | 3 x 10E-14 torr |
